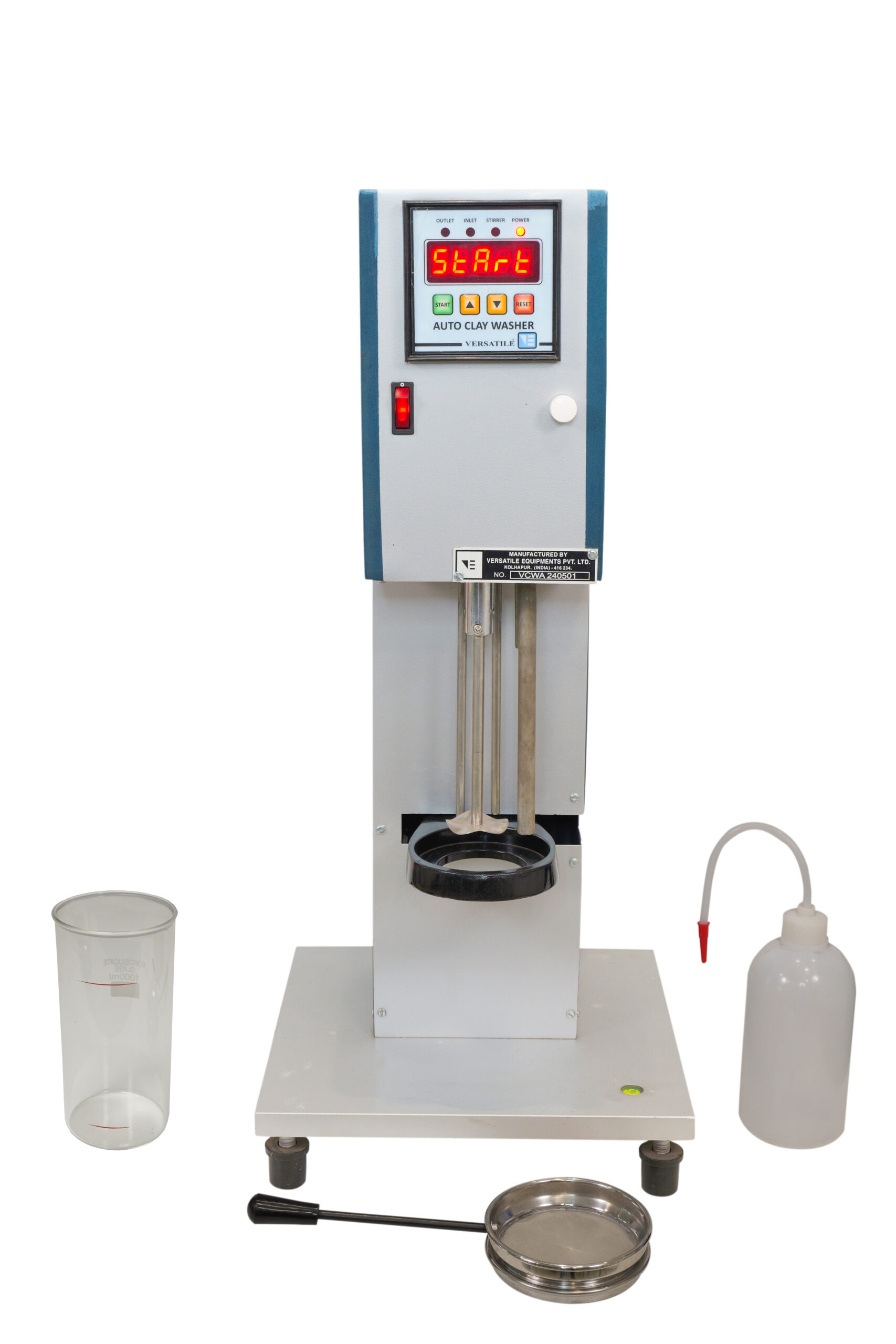

Auto Clay Washer VCWA
1.1 General information
The equipment consists of a Motorized Stirring mechanism, water leveling mechanism & auto syphoning mechanism for syphon-out the muddy water. Adjustable timers & adjustable cycle count facility.
1.2 General Usage
This equipment is used for sample of the sand is thoroughly agitated in alkaline solution. The clay remains in suspension, which is separated from the sample.
1.3 Product Data
Product Name:
Auto Clay Washer
Product Code:
VCWA
Order Reference Code:
V0000076
Electrical Supply Required:
230v 50Hz A.C. (Default)
110v 60 Hz A.C (Optional)
Single Phase, Stabilized with Over/ Under Voltage cut-off.
Electrical Plug:
M type : 6 Amp Plug
Typical Maximum Current:
2.6 A at 230V
Compressed air Supply:
Not Required
Tap Water Supply:
Clean water@4 PSI
Communication:
Not Applicable
Dimensions:
300x300x680mm (WXBXH)
Packing Dimensions:
410x410x890mm (WXBXH) Typical
Net Weight:
Approximately 30 kg
Gross Weight:
Approximately 35 kg
Colour:
Factory Default
Measuring Range:
Not Applicable
Traceable to:
Manufacturers Standards
Least Count:
Not Applicable
Specimen Requirements:
Not Required
Operating Temperature:
0-50 degrees Celsius
Testing Standards:
BIS: Standard
AFS: Optional
Calibration Frequency:
4500 nos. of Testing Cycles or Once in Year
2.1 Scope of supply
- Auto Clay washer.
- Glass Jar & Wash bottle.
- Assy Sieve (53 Mic.)
- Working condition certificate.
- Instruction manual.
3.1 Recommended pre-requisite equipment
Sand Splitter : To get representative sample
Rapid Dryer VRD.
4.1 Recommended Calibration kits
NA
4.2 Recommended attachments
NA
4.3 Alternative equipment
Clay Washer VCW
5.1 Consumables
- Demineralized Water
- Sodium hydroxide
