Clay Washer VCW
1.1 General information

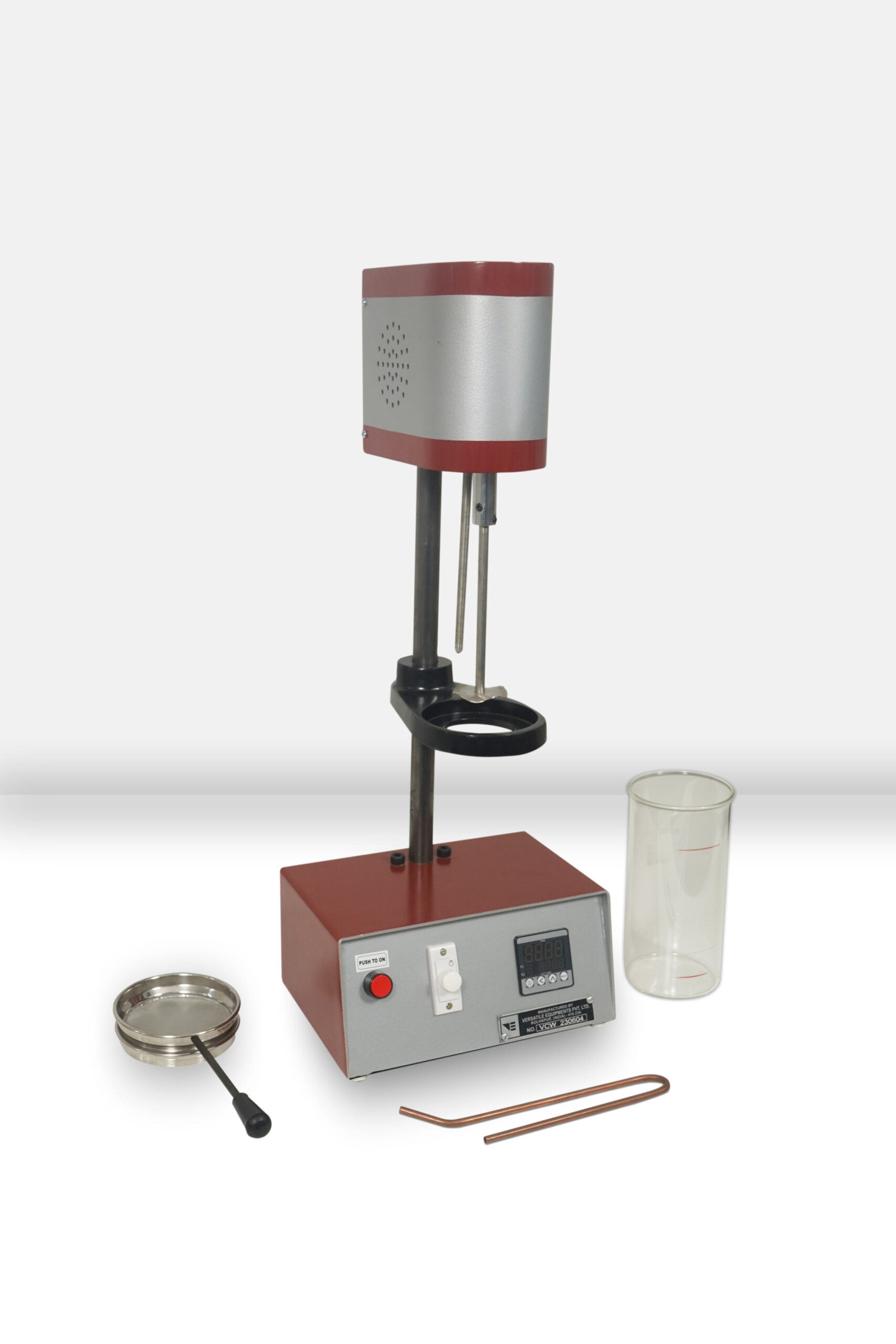

The equipment consists of a Motorized Stirring mechanism, Timer, Glass Jar & Syphon for syphon-out the muddy water.
1.2 General Usage
This equipment is used for sample of the sand is thoroughly agitated in alkaline solution. The clay remains in suspension, which is separated from the sample.
1.3 Product Data
Product Name:
Clay Washer
Product Code:
VCW
Order Reference Code:
V0000007
Electrical Supply Required:
230v 50Hz A.C. (Default)
110v 60 Hz A.C (Optional)
Single Phase, Stabilized with Over/ Under Voltage cut-off.
Electrical Plug:
M type : 6 Amp Plug
Typical Maximum Current:
2.6 A at 230V
Compressed air Supply:
Not Required
Communication:
Not Applicable
Dimensions:
250x190x620mm (WXBXH)
Packing Dimensions:
410x410x890mm (WXBXH) Typical
Net Weight:
Approximately 9.2 kg
Gross Weight:
Approximately 12 kg
Colour:
Factory Default
Measuring Range:
Not Applicable
Traceable to:
Manufacturers Standards
Least Count:
Not Applicable
Specimen Requirements:
Not Required
Operating Temperature:
0-50 degrees Celsius
Testing Standards:
BIS: Standard
AFS: Optional
Calibration Frequency:
4500 nos. of Testing Cycles or Once in Year
2.1 Scope of supply
- Clay washer.
- Glass Jar, Syphon & Wash bottle.
- Assy Sieve (53 Mic.)
- Working condition certificate.
- Instruction manual.
3.1 Recommended pre-requisite equipment
Sand Splitter : To get representative sample
Rapid Dryer VRD.
4.1 Recommended Calibration kits
NA
4.2 Recommended attachments
- NA
4.3 Alternative equipment
- Auto Clay Washer VCWA
-
Auto Clay Washer VCWA I
5.1 Consumables
- Demineralized Water
- Sodium hydroxide
