Compactibility Tester VCT
1.1 General information

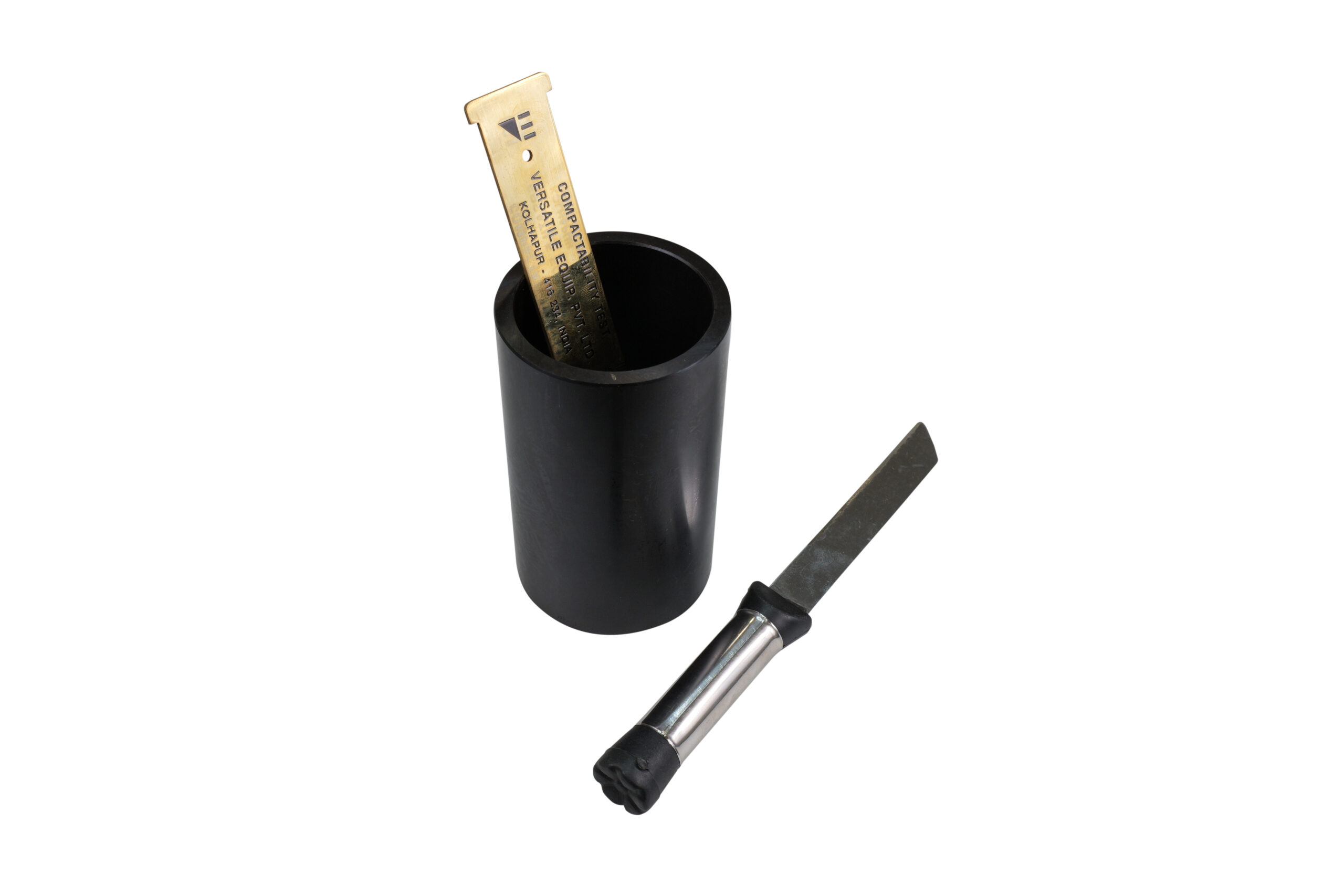

It consists of a special specimen tube, knife and compactibility scale.
1.2 General Usage
The Accessory is used to find out the compactibility of moulding sand with help of sand rammer.
1.3 Product Data
Product Name:
Compactibility Tester
Product Code:
VCT
Order Reference Code:
V0000003
Electrical Supply Required:
Not Required
Electrical Plug:
Not Applicable
Typical Maximum Current:
Not Applicable
Compressed air Supply:
Not Required
Communication:
Not Applicable
Dimensions:
100 X 100 X 185 mm (WXBXH)
Packing Dimensions:
230 mmx 230mm x 130 mm (WXBXH) Typical
Net Weight:
Approximately 1.25 kg
Gross Weight:
Approximately 2 kg
Colour:
Factory Default
Measuring Range:
0-70 %
Traceable to:
NABL Standards
Least Count:
1 %
Specimen Requirements:
Not Required
Operating Temperature:
0-50 degrees Celsius
Testing Standards:
BIS: Standard
AFS: Optional
Calibration Frequency:
22500 nos. of Testing Cycles or Once in Year
2.1 Scope of supply
- Special specimen tube.
- Compactibility Scale & Knife.
- Calibration certificate.
- Instruction manual.
3.1 Recommended pre-requisite equipment
Sand Splitter : To get representative sample
Sand Rammer with Base Block VR+VRB.
Tube Filler Accessory VTF.
4.1 Recommended Calibration kits
Special Length Gauge
4.2 Recommended attachments
- NA
4.3 Alternative equipment
- Sand Squeezer VCC
- Digital Compactibility Tester VCCD
- VCAT Multi Tester
5.1 Consumables
- NA
