Deep Pocket Mould Hardness Tester Analogue VMHV
1.1 General information

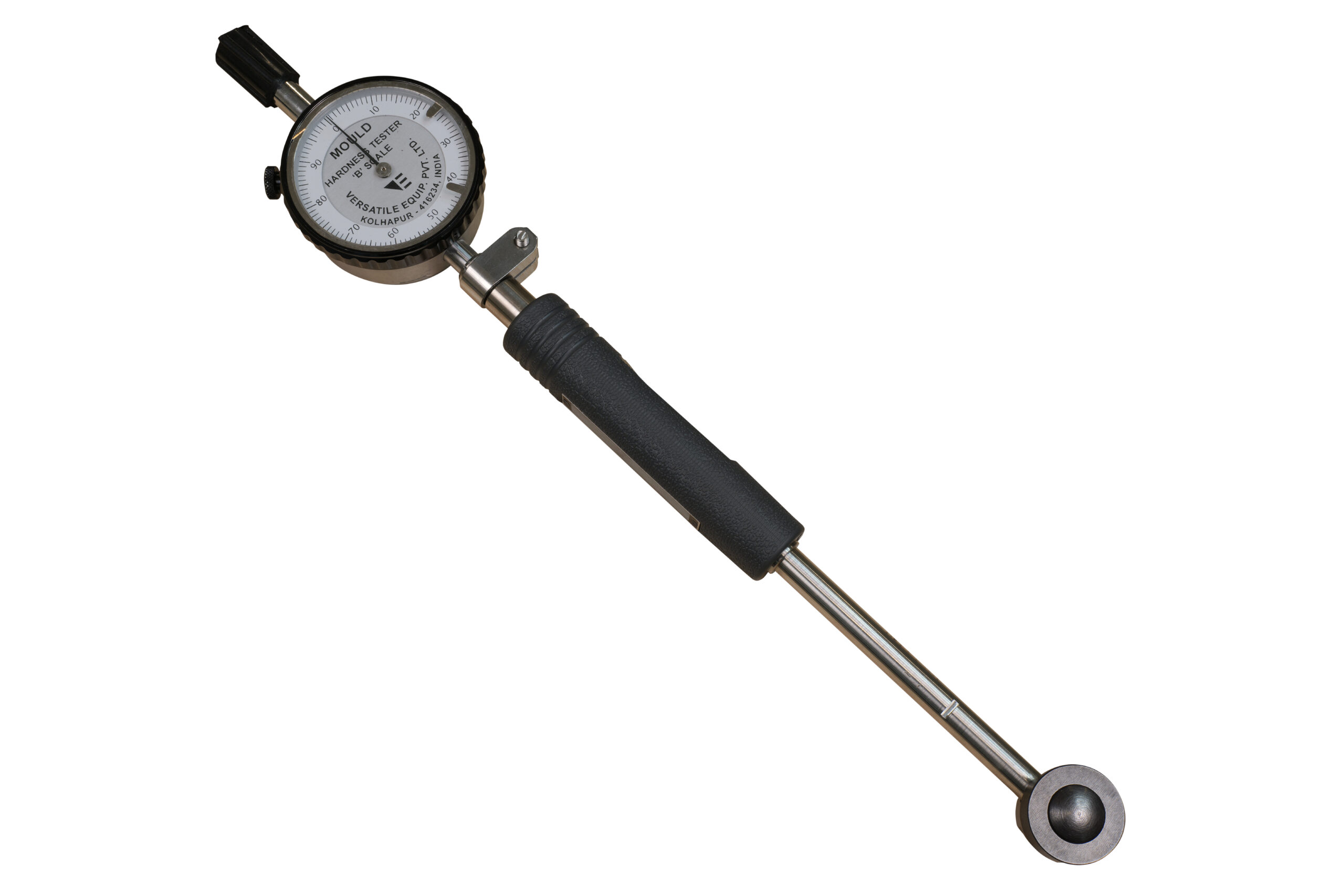

This handheld equipment consists of a analogue indicator with special tip designed for measurement of hardness in deep flat and narrow pockets in mould such as green sand moulds.
1.2 General Usage
Tip of the equipment is pressed against flat mould surface to observe hardness between 0-100 typically called as mould hardness number.
1.3 Product Data
Product Name:
Deep Pocket Mould Hardness Tester Analogue
Product Code:
VMHV
Order Reference Code:
V0000097
Electrical Supply Required:
Not Required
Electrical Plug:
Not Applicable
Typical Maximum Current:
Not Applicable
Compressed air Supply:
Not Required
Communication:
Not Applicable
Dimensions:
415x120x55 mm (WXBXH)
Packing Dimensions:
520x220x150 mm (WXBXH) Typical
Net Weight:
Approximately 1.5 kg
Gross Weight:
Approximately 2.5 kg
Colour:
Factory Default
Measuring Range:
0-100 MHN (Mould Hardness Number)
Traceable to:
NABL Standards
Least Count:
1 MHN
Specimen Requirements:
Not Required
Operating Temperature:
0-50 degree Celsius
Testing Standards:
BIS: Standard
AFS: Not Applicable
Calibration Frequency:
12500 nos. of Testing Cycles or Once in six months.
2.1 Scope of supply
- Hand-held equipment with tip protector.
- Head Pipe Cap.
- A box to house the equipment when not in use.
- Calibration certificate.
- Instruction manual.
3.1 Recommended pre-requisite equipment
NA
4.1 Recommended Calibration kits
VKMC: Calibration Kit for Mould & Core Hardness tester
4.2 Recommended attachments
NA
4.3 Alternative equipment
NA
5.1 Consumables
NA
