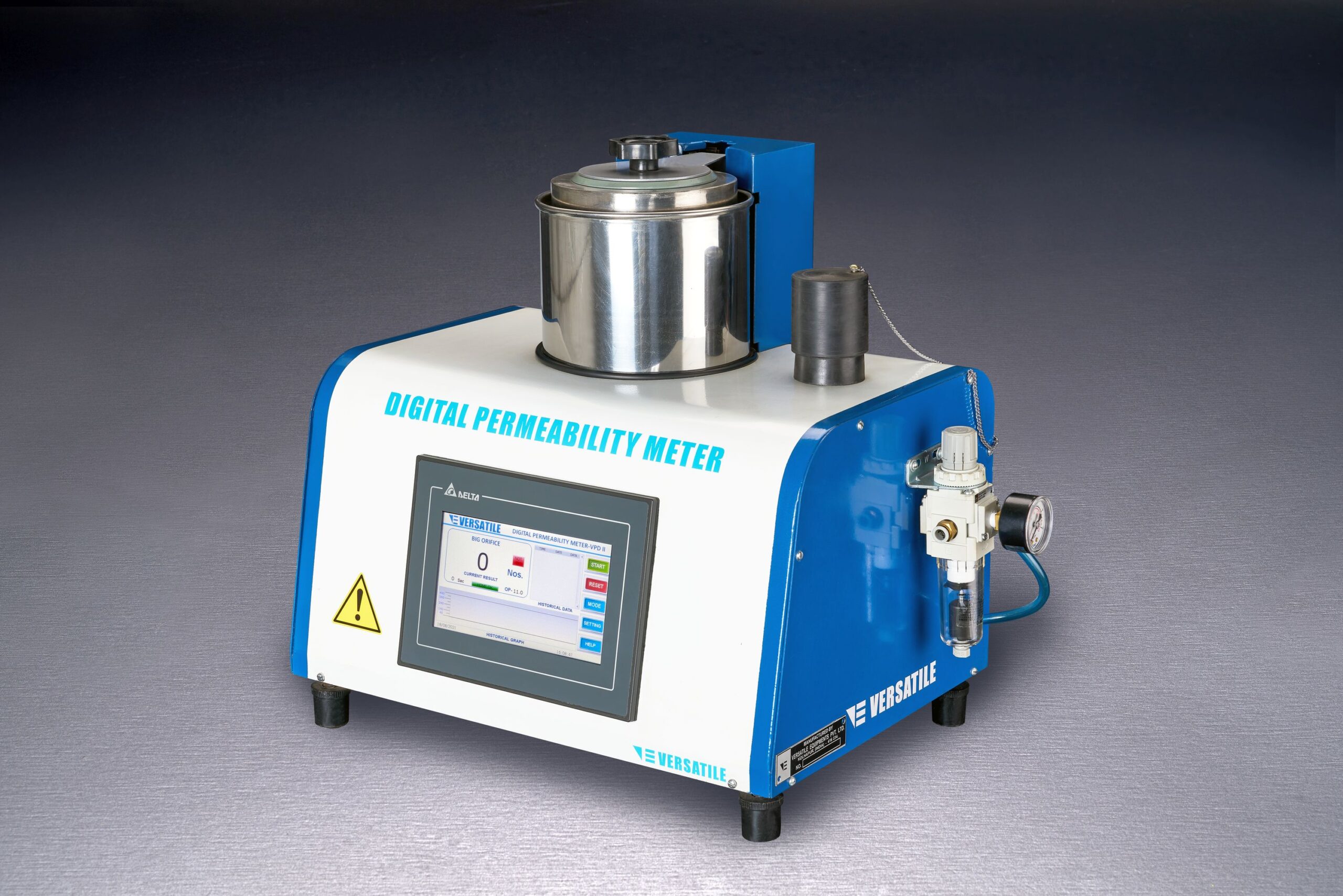

Digital Permeability Meter VPD II

Digital Permeability Meter VPD II



  • 1.1 General information

    This is a precision equipment to measure Permeability of Foundry Sands. By default it can measure absolute permeability of an AFS (Dia. 2”X2”) or Metric (Dia. 50mmX50mm) Specimen.

    With Help of attachment it can also measure

    • Relative Permeability of Moulds (Refer 4.2.1)
    • Absolute Permeability of Cores (Refer 4.2.2)
    • Absolute Permeability of Un-bonded sand (Refer 4.2.3).

  • 1.2 General Usage

    Specimen held in a Tube or accessory is placed on the measuring Rubber Boss. On press of start button, within few seconds the equipment shows Permeability reading.

  • 1.3 Product Data

    Product Name:

    Digital Permeability Meter

    Product Code:

    VPD II

    Order Reference Code:

    V0000109

    Electrical Supply Required:

    230v 50Hz A.C. (Default)

    110v 60 Hz A.C (Optional)

    Single Phase, Stabilized with Over/ Under Voltage cut-off.

    Electrical Plug:

    M type : 15 Amp Plug

    Typical Maximum Current:

    1.5 A at 230V

    Compressed air Supply:

    Required 2 Kg/cm2 Dry Compressed Air to make the operations fully automatic.

    Optional if Air Drum can be lifted by Operator.

    Communication:
    • Ethernet (RJ45)
    • Cloud Sync using V-Sync

    Dimensions:

    535x330x475 mm (WXBXH)

    Packing Dimensions:

    640x440x600 mm

    (WXBXH) Typical

    Net Weight:

    Approximately 30 kg

    Gross Weight:

    Approximately 40 kg

    Colour:

    Factory Default

    Measuring Range:

    0-100 mmWC and Related readings AFS Permeability measurement chart digitally displayed.

    Traceable to:

    Manufacturers Standards

    Least Count:

    0.1 cmWC

    Specimen Requirements:

    Compression type specimen

    Operating Temperature:

    0-500C

    Testing Standards:

    BIS: Standard

    AFS: Optional

    (for standard specimen)

    Calibration Frequency:

    22500 nos. of Testing Cycles or Once in Year

  • 2.1 Scope of supply

    • Digital Permeability Meter.
    • Large Orifice.
    • Syphon Pump.
    • Calibration certificate.
    • Instruction manual.

  • 3.1 Recommended pre-requisite equipment

    Sand Splitter : To get representative sample

    Specimen preparation equipment’s to make a standard AFS or Metric specimen.

  • 4.1 Recommended Calibration kits

    There are four types of calibration kits to choose from:

    VKPA: With Std. Specimen type for Small Orifice

    VKPB: With Std. Specimen type for Large Orifice

    VKPC: With Rubber Boss type for Small Orifice

    VKPD: With Rubber Boss type for Large Orifice

  • 4.2 Recommended attachments

    VPR: Mould Perm Tester

    VD: Core Permeability Tube

    VBP: Base Permeability Tube

    Small Orifice

  • 4.3 Alternative equipment

    Digital Permeability Meter VPD

    Digital Permeability Meter VPD I

    VCAT Multi Tester
