Rapid Moisture Meter VM
1.1 General information

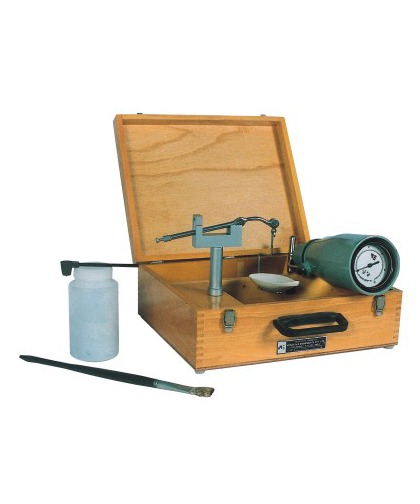

This handheld Equipment consists of a Dial indicator with Marked Percentages for measurement of Moisture in sand sample.
1.2 General Usage
Measured sand sample is put inside the equipment along with measured quantity of Absorbent Compound. Equipment is then sealed and shaken to get Percentage moisture in the sand sample.
1.3 Product Data
Product Name:
Rapid Moisture Meter
Product Code:
VM
Order Reference Code:
V0000014
Electrical Supply Required:
Not Required
Electrical Plug:
Not Applicable
Typical Maximum Current:
Not Applicable
Compressed air Supply:
Not Required
Communication:
Not Applicable
Dimensions:
350 X 300 X 200 mm (WXBXH)
Packing Dimensions:
450 mmx 400 mm x 300 mm (WXBXH) Typical
Net Weight:
Approximately 10 kg
Gross Weight:
Approximately 15 kg
Colour:
Factory Default
Measuring Range:
0-10 %
Traceable to:
Manufacturers Standards
Least Count:
0.1%
Specimen Requirements:
Not Required
Operating Temperature:
0-50 degrees Celsius
Testing Standards:
BIS: Standard
AFS: Not Applicable
Calibration Frequency:
22500 nos. of Testing Cycles or Once in Year
2.1 Scope of supply
- Hand-held equipment with Dial indicator.
- Absorbent compound 0.5 Kg. (for Domestic only)
- A Wooden Case to house the equipment.
- Sand sample weighing balance.
- A cleaning brush.
- Absorbent compound measuring spoon.
- Calibration certificate.
- Instruction manual.
3.1 Recommended pre-requisite equipment
VLM: Sand Muller
VJL: Sand Splitter (To get representative sample)
4.1 Recommended Calibration kits
VKM: Calibration Kit Moisture Meter
4.2 Recommended attachments
- NA
4.3 Alternative equipment
- Digital Moisture Accessory VRMD
- Digital Moisture Meter VMD
- VCAT Multi Tester
5.1 Consumables
- Aabsorbent Compound # V4000162
