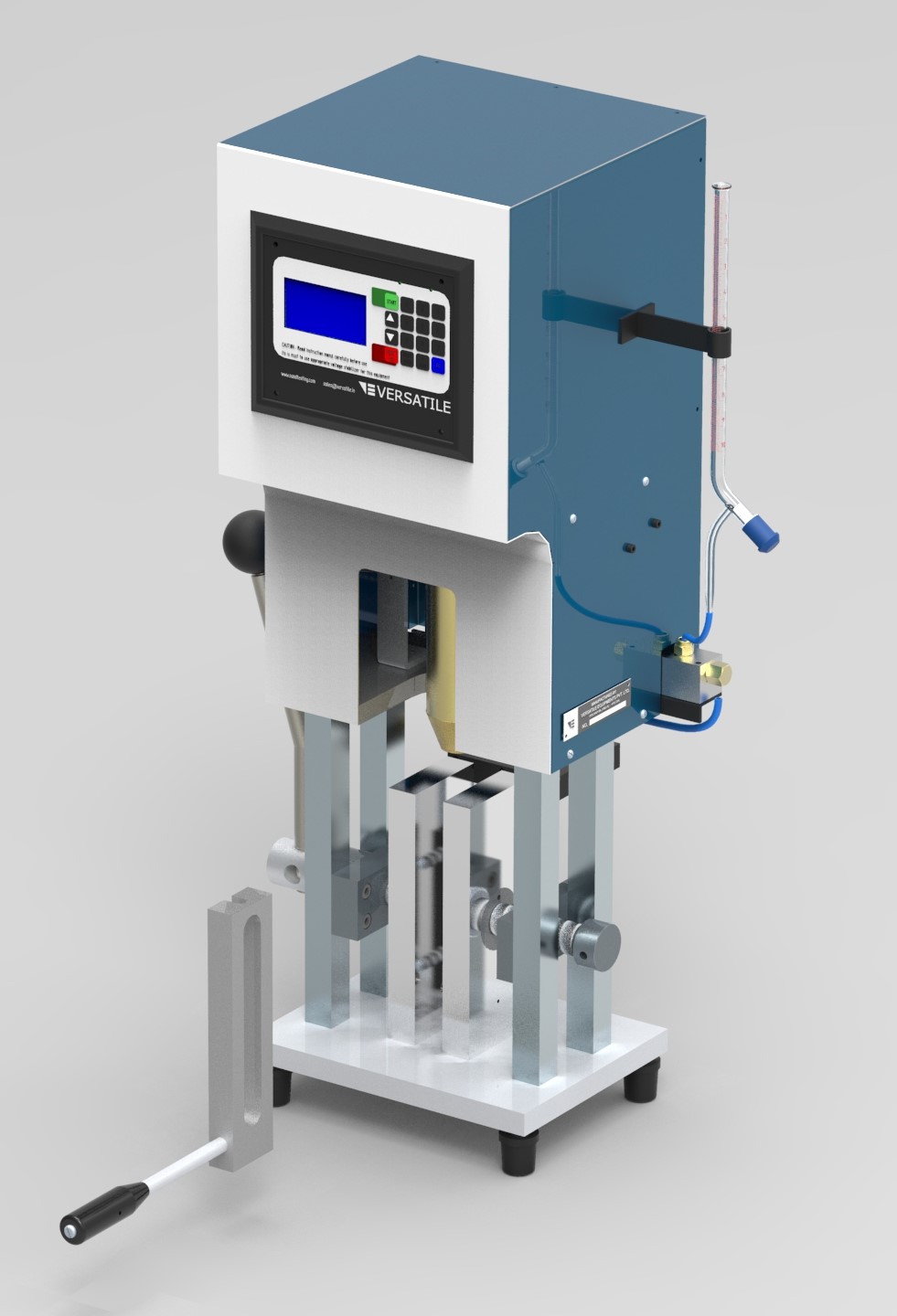

Sand Shooter Cold Box for Transverse VSSC-T
1.1 General information
Sand shooter cold box is consists of controlled heating mechanism with temperature indicator, transverse type split core box with handle. Sand shooting arrangement, suitable for cold box sand. Gassing accessory with clamping mechanism.
1.2 General Usage
Sand shooter cold box has been designed as a complete unit for prepare the specimen from clod box sand. Prepared specimen use to check the transverse strength of sand.
1.3 Product Data
Product Name:
Sand Shooter Cold Box for Transverse
Product Code:
VSSC-T
Order Reference Code:
V9001996
Electrical Supply Required:
230v 50Hz A.C. (Default)
110v 60 Hz A.C (Optional)
Single Phase, Stabilized with Over/ Under Voltage cut-off.
Electrical Plug:
M type : 15 Amp Plug
Typical Maximum Current:
2.2 A at 230V
Compressed air Supply:
5 Kg/cm2 Dry Air
Communication:
Not Applicable
Dimensions:
460x380x830mm (WXBXH)
Packing Dimensions:
510x460x1000mm (WXBXH) Typical
Net Weight:
Approximately 58 kg
Gross Weight:
Approximately 68 kg
Colour:
Factory Default
Measuring Range:
One Specimen
Traceable to:
Manufacturers Standards
Least Count:
Not Applicable
Specimen Requirements:
Not Required
Operating Temperature:
0-50 degrees Celsius
Testing Standards:
BIS: Standard
AFS: Optional
Calibration Frequency:
11500 nos. of Testing Cycles or Once in Year
2.1 Scope of supply
- Sand shooter cold box.
- Transverse core box with handle.
- Gassing Accessories.
- Burette.
- Assy outer tube.
- Hand gloves set.
- Calibration certificate.
- Instruction manual.
3.1 Recommended pre-requisite equipment
Sand Splitter : To get representative sample
Sans Mixer VCS4 or
Sand Mixer VCS10
4.1 Recommended Calibration kits
VKHC: For Temperature
4.2 Recommended attachments
NA
4.3 Alternative equipment
NA
5.1 Consumables
Amine gas liquid.
