Transverse Strength Machine VTAD
1.1 General information

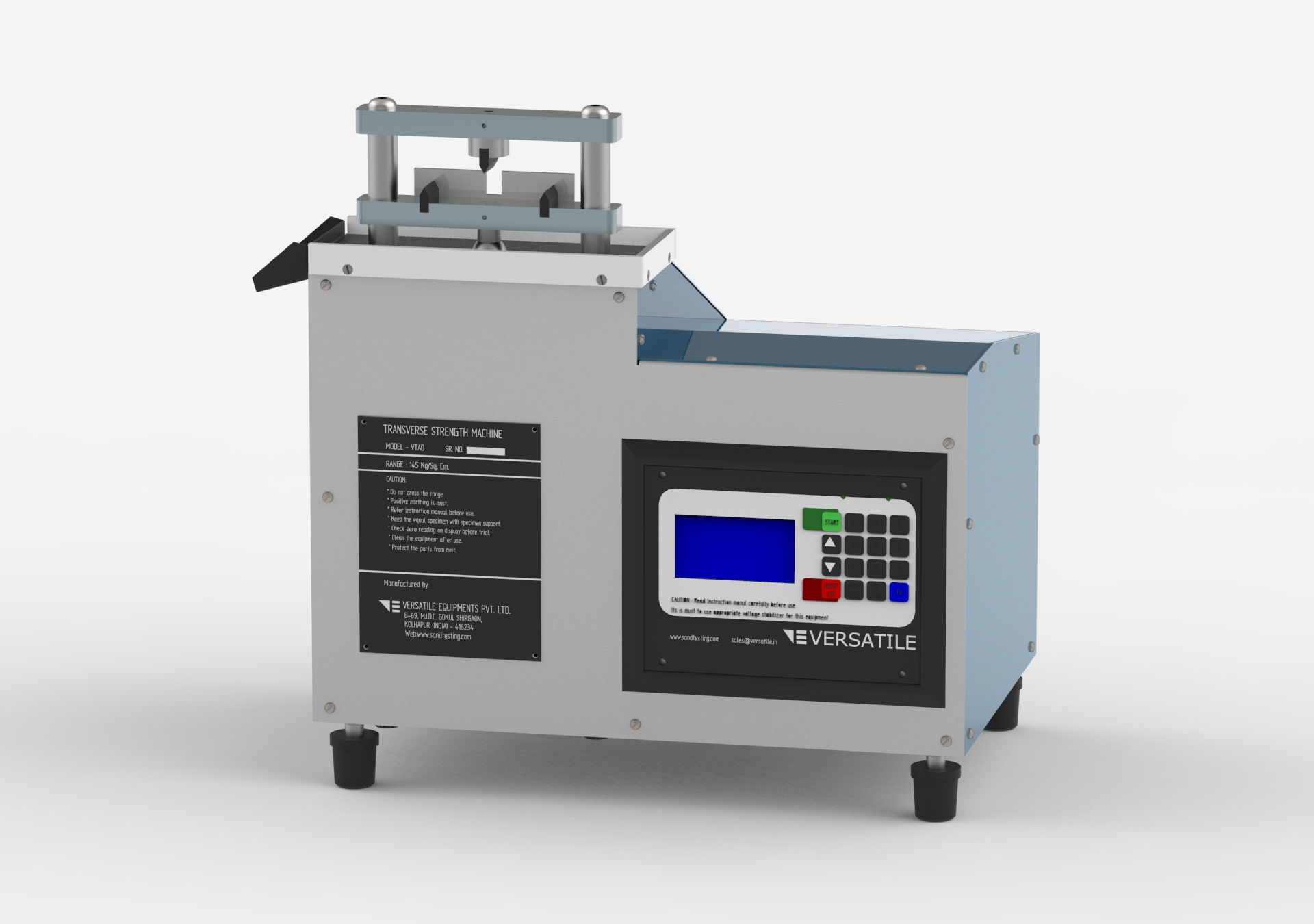

Transverse Strength Machine is equipped with a loading mechanism and sensing mechanism which are controlled by microcontroller and observed on LCD display. It can measure transverse strength of ¼”X1”X4” Specimen of resin coated sand.
1.2 General Usage
Keep the specimen on two point support & press of start button, within few seconds the equipment shows the reading
1.3 Product Data
Product Name:
Transverse Strength Machine
Product Code:
VTAD
Order Reference Code:
V0000057
Electrical Supply Required:
230v 50Hz A.C. (Default)
110v 60 Hz A.C (Optional)
Single Phase, Stabilized with Over/ Under Voltage cut-off.
Electrical Plug:
M type : 15 Amp Plug
Typical Maximum Current:
1.5 A at 230V
Compressed air Supply:
Not Required
Communication:
- RS485 MODBUS RTU
- Cloud Sync using V-Sync
Dimensions:
490 X 330 X 435 mm (WXBXH)
Packing Dimensions:
610 mmx 490mm x 690 mm (WXBXH) Typical
Net Weight:
Approximately 43 kg
Gross Weight:
Approximately 53 kg
Colour:
Factory Default
Measuring Range:
Strength: 145 Kg/cm2
Traceable to:
NABL Standards
Least Count:
Transverse: 0.1 Kg/cm2
Specimen Requirements:
Required
Operating Temperature:
0-50 degrees Celsius
Testing Standards:
AFS
Calibration Frequency:
22500 nos. of Testing Cycles or Once in Year
2.1 Scope of supply
- Transverse Strength Machine.
- Calibration plate.
- Calibration certificate.
- Instruction manual.
3.1 Recommended pre-requisite equipment
Sand Splitter : To get representative sample
Specimen preparation equipment’s to make a standard specimen.
4.1 Recommended Calibration kits
Standard dead weights.
4.2 Recommended attachments
NA
4.3 Alternative equipment
Transverse Strength Machine VTAD I
5.1 Consumables
NA
