Universal Strength Machine VUD III

Universal Strength Machine VUD III

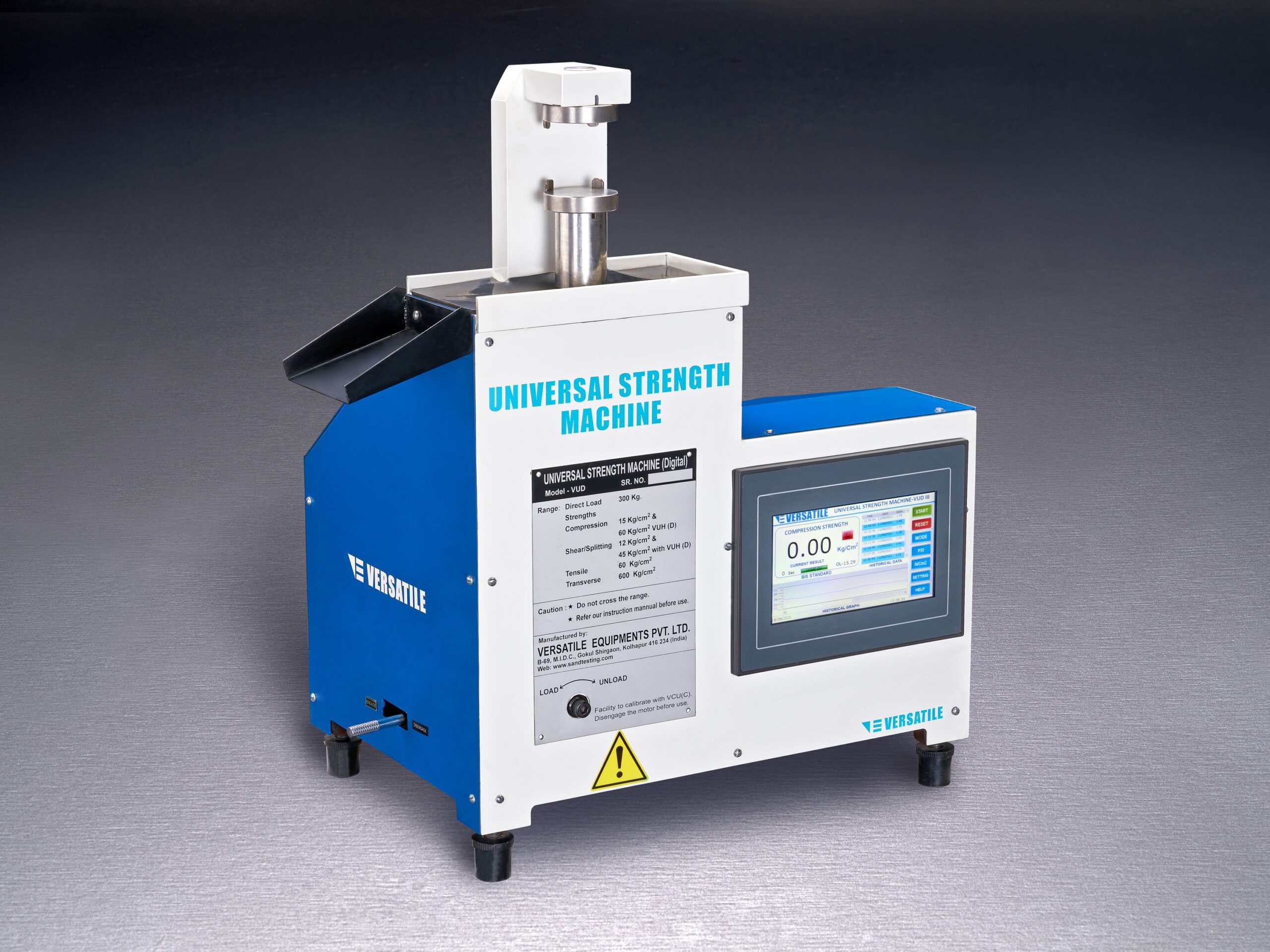

The Universal Strength Machine is a highly versatile piece of sand testing equipment that can measure compressive, transverse, and flexural strength. It is equipped with a built-in load cell and digital display, as well as a powerful motor and a wide range of load capacities. It is designed for precision and accuracy, and is easy to use and maintain.

  • 1.1 General information

    Universal Strength machine is equipped with a loading mechanism and sensing mechanism which are controlled by Microcontroller or PLC and observed on LCD display. By default it can measure Compression strength of an AFS (Dia. 2”X2”) or Metric (Dia. 50mmX50mm) Specimen.

    With the help of attachments which can be bought seperately it can also measure

    · High Compression Strength

    · Shear Strength (Refer 4.2.2)

    · Splitting Strength (Refer 4.2.3).

    · Tensile Strength (Refer 4.2.4).

    · Transverse Strength (Refer 4.2.5).

    · Twin Transverse Strength (Refer 4.2.6).

    · Deformation (Refer 4.2.7).

  • 1.2 General Usage

    Keep a suitable specimen in between compression pads or in an accessory and press the start button. Within few seconds the equipment shows the strength reading.

  • 1.3 Product Data

    Product Name:

    Universal Strength Machine

    Product Code:

    VUD III

    Order Reference Code:

    V0000108

    Electrical Supply Required:

    230v 50Hz A.C. (Default)

    110v 60 Hz A.C (Optional)

    Single Phase, Stabilized with Over/ Under Voltage cut-off.

    Electrical Plug:

    M type : 15 Amp Plug

    Typical Maximum Current:

    1.5 A at 230V

    Compressed air Supply:

    Not Required

    Communication:
    • Ethernet (RJ45)
    • CloudSync using V-Sync

    Dimensions:

    545 X 320 X 610 mm (WXBXH)

    Packing Dimensions:

    650 mmx 420mm x 760 mm (WXBXH) Typical

    Net Weight:

    Approximately 46 kg

    Gross Weight:

    Approximately 56 kg

    Colour:

    Factory Default

    Measuring Range:

    Direct Load: 300 Kg

    Compression: 15 Kg/cm2

    Shear/Splitting: 12 Kg/cm2

    Tensile : 60 Kg/cm2

    Transverse: 600 Kg/cm2

    Deformation: 10mm

    Traceable to:

    NABL Standards

    Least Count:

    Direct Load: 0.1 Kg

    Compression: 0.05 Kg/cm2

    Shear/Splitting: 0.05 Kg/cm2

    Tensile : 0.05 Kg/cm2

    Transverse: 1 Kg/cm2

    Twin Transverse: 0.05 Kg/cm2

    Deformation: 0.01 mm

    Specimen Requirements:

    Required

    Operating Temperature:

    0-500C

    Testing Standards:

    BIS/AFS

    Calibration Frequency:

    22500 nos. of Testing Cycles or Once in Year

  • 2.1 Scope of supply

    • Universal Strength Machine.
    • Compression pad set.
    • Calibration certificate.
    • Instruction manual.

  • 3.1 Recommended pre-requisite equipment

    • Sand Splitter: To get a representative sample from a sample taken from the process.
    • Specimen preparation equipment to make a standard AFS or Metric specimen.

  • 4.1 Recommended Calibration kits

    There are two types of calibration kits to choose from:

    • VKSL: For Low Strength
    • VKSH: For High Strength

  • 4.2 Recommended attachments

    • VUHD: High Dry Strength Attachment
    • VHS: Shear Strength Attachment
    • VSA: Splitting Strength Attachment
    • VAS: Tensile Strength Attachment
    • VTS: Transverse Strength Attachment
    • VTT: Twin Transverse Shear Attachment
    • VDSD: Deformation Attachment

  • 4.3 Alternative equipment

    • Universal Strength Machine VUD
    • Universal Strength Machine Hydraulic VUN (For Educational Purposes)
    • Universal Strength Machine VUM
