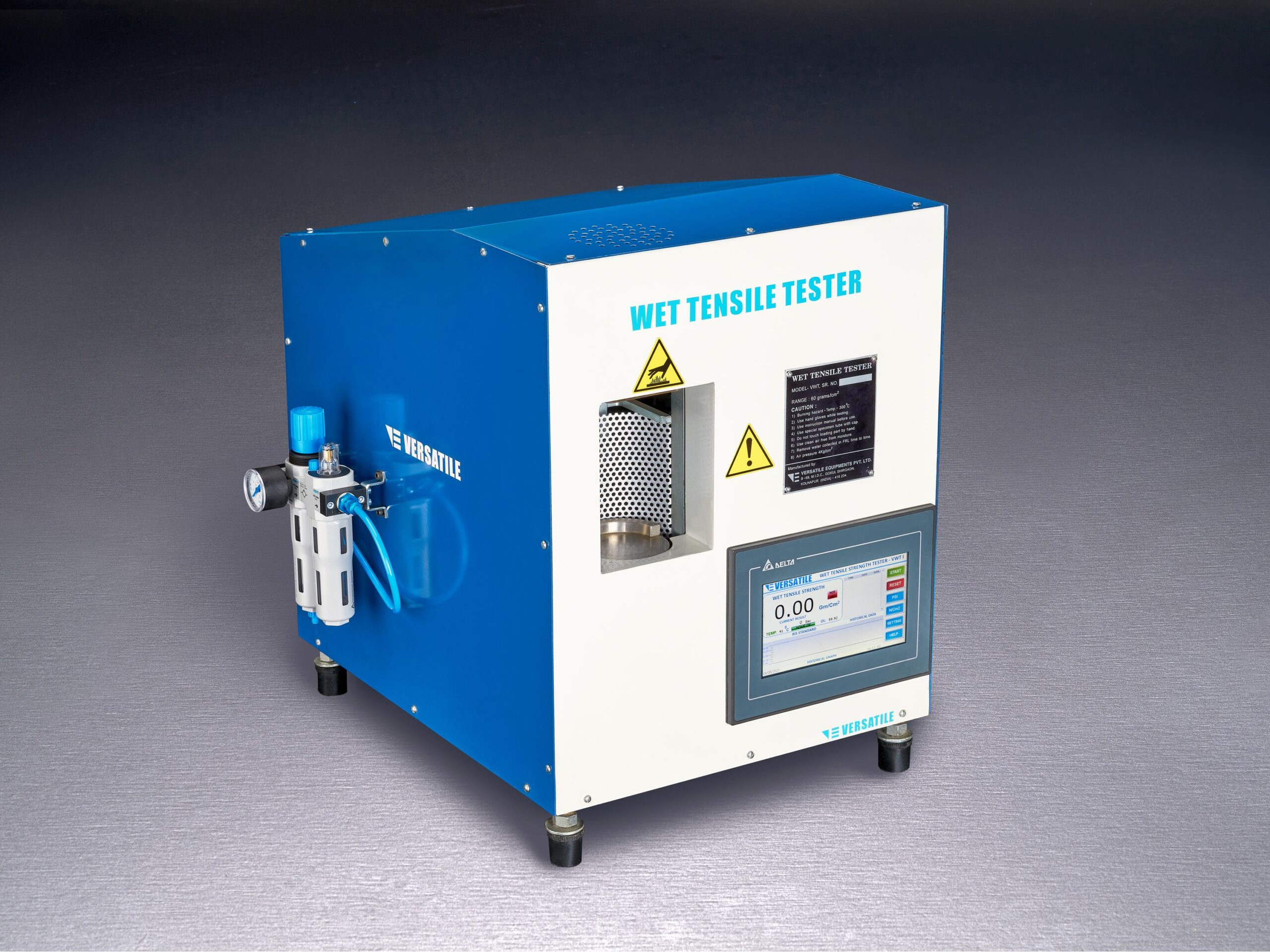

Wet Tensile Tester VWT I
Wet Tensile Tester is equipped with a loading mechanism, heating mechanism and sensing mechanism which are controlled by PLC and observed on screen touch HMI.
1.1 General information
Wet Tensile Tester is equipped with a loading mechanism, heating mechanism and sensing mechanism which are controlled by PLC and observed on screen touch HMI.
1.2 General Usage
Specimen held in a tube with special tube cap is placed on the specimen tube seat. On press of start button, after curing time the equipment shows wet tensile reading.
1.3 Product Data
Product Name:
Wet Tensile Tester
Product Code:
VWT I
Order Reference Code:
V0000111
Electrical Supply Required:
230v 50Hz A.C. (Default)
110v 60 Hz A.C (Optional)
Single Phase, Stabilized with Over/ Under Voltage cut-off.
Electrical Plug:
M type : 15 Amp Plug
Typical Maximum Current:
2.5 A at 230V
Compressed air Supply:
5 Kg/cm2 Compressed Dry Air
Communication:
- Ethernet
- CloudSync using V-Sync
Dimensions:
500x500x520 mm (WXBXH)
Packing Dimensions:
600x600x630 mm (WXBXH) Typical
Net Weight:
Approximately 65 kg
Gross Weight:
Approximately 75 kg
Colour:
Factory Default
Measuring Range:
60 Grams/cm2
Traceable to:
NABL Standards
Least Count:
0.05 Gm/cm2
Specimen Requirements:
Required
Operating Temperature:
0-500C
Testing Standards:
BIS: Standard
AFS: Optional
Calibration Frequency:
22500 nos. of Testing Cycles or Once in Year
2.1 Scope of supply
- Wet Tensile Tester.
- Special tube, Special tube cap & Special pedestal cup
- Calibration dead weights set
- Hand gloves set asbestos
- Calibration certificate.
- Instruction manual.
3.1 Recommended pre-requisite equipment
Sand Splitter : To get representative sample
Specimen preparation equipment’s to make a standard AFS or Metric specimen.
4.1 Recommended Calibration kits
There are two types of calibration kits to choose from:
- VKSL: For Low Strength
- VKSH: For High Strength
4.2 Recommended attachments
NA
4.3 Alternative equipment
Wet Tensile Tester VWT
