Description
1.1 General information

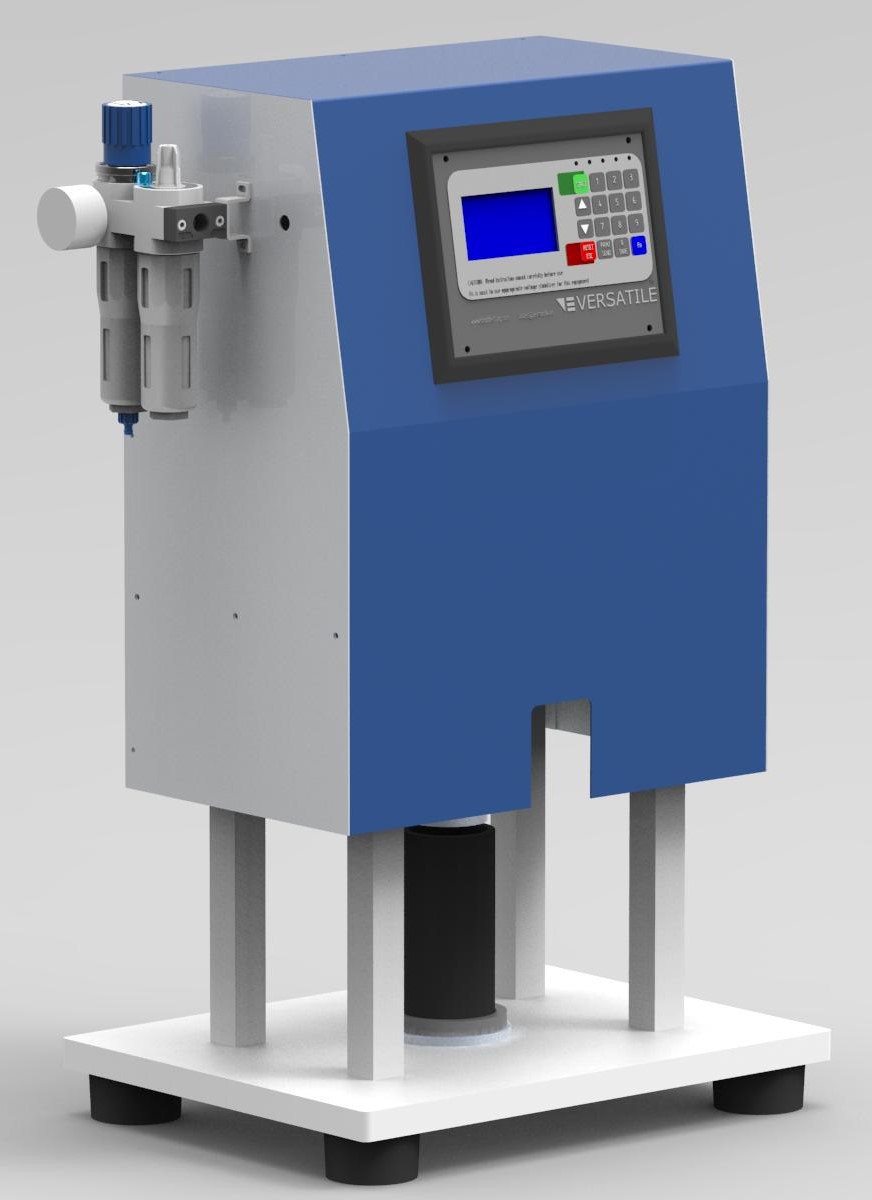

Digital Compactibility Tester is equipped with a squeezing mechanism and sensing mechanism which are controlled by Microcontroller or PLC and observed on LCD display.
1.2 General Usage
To check compactibility & to prepare standard specimen under identical condition for checking important physical properties of moulding sand.
1.3 Product Data
|
Product Name: |
Digital Compctibility Tester |
|
Product Code: |
VCCD |
|
Order Reference Code: |
V9001343 |
|
Electrical Supply Required: |
230v 50Hz A.C. (Default) 110v 60 Hz A.C (Optional) Single Phase, Stabilized with Over/ Under Voltage cut-off. |
|
Electrical Plug: |
M type : 15 Amp Plug |
|
Typical Maximum Current: |
2.2 A at 230V |
|
Compressed air Supply: |
5 Kg/cm2 Dry Air |
|
Communication: |
|
|
Dimensions: |
465x300x665 mm (WXBXH) |
|
Packing Dimensions: |
565x400x815 mm (WXBXH) Typical |
|
Net Weight: |
Approximately 52 kg |
|
Gross Weight: |
Approximately 60 kg |
|
Colour: |
Factory Default |
|
Measuring Range: |
0 to 52 % |
|
Traceable to: |
NABL Standards |
|
Least Count: |
0.1 % |
|
Specimen Requirements: |
Not Required |
|
Operating Temperature: |
0-50 degrees Celsius |
|
Testing Standards: |
BIS: Standard AFS: Optional |
|
Calibration Frequency: |
22500 nos. of Testing Cycles or Once in Year |
2.1 Scope of supply
- Digital Compatibility Tester.
- Specimen tubes, Pedestal cup & Stripper.
- Calibration certificate.
- Instruction manual.
3.1 Recommended pre-requisite equipment
Sand Splitter : To get representative sample
Tube Filler Accessory VTF.
Weighing Balance (LC 10mg)
4.1 Recommended Calibration kits
Calibration Piece High VCCD
Calibration Piece Low VCCD
4.2 Recommended attachments
NA
4.3 Alternative equipment
Sand Squeezer VCC
5.1 Consumables
NA
