Description
1.1 General information

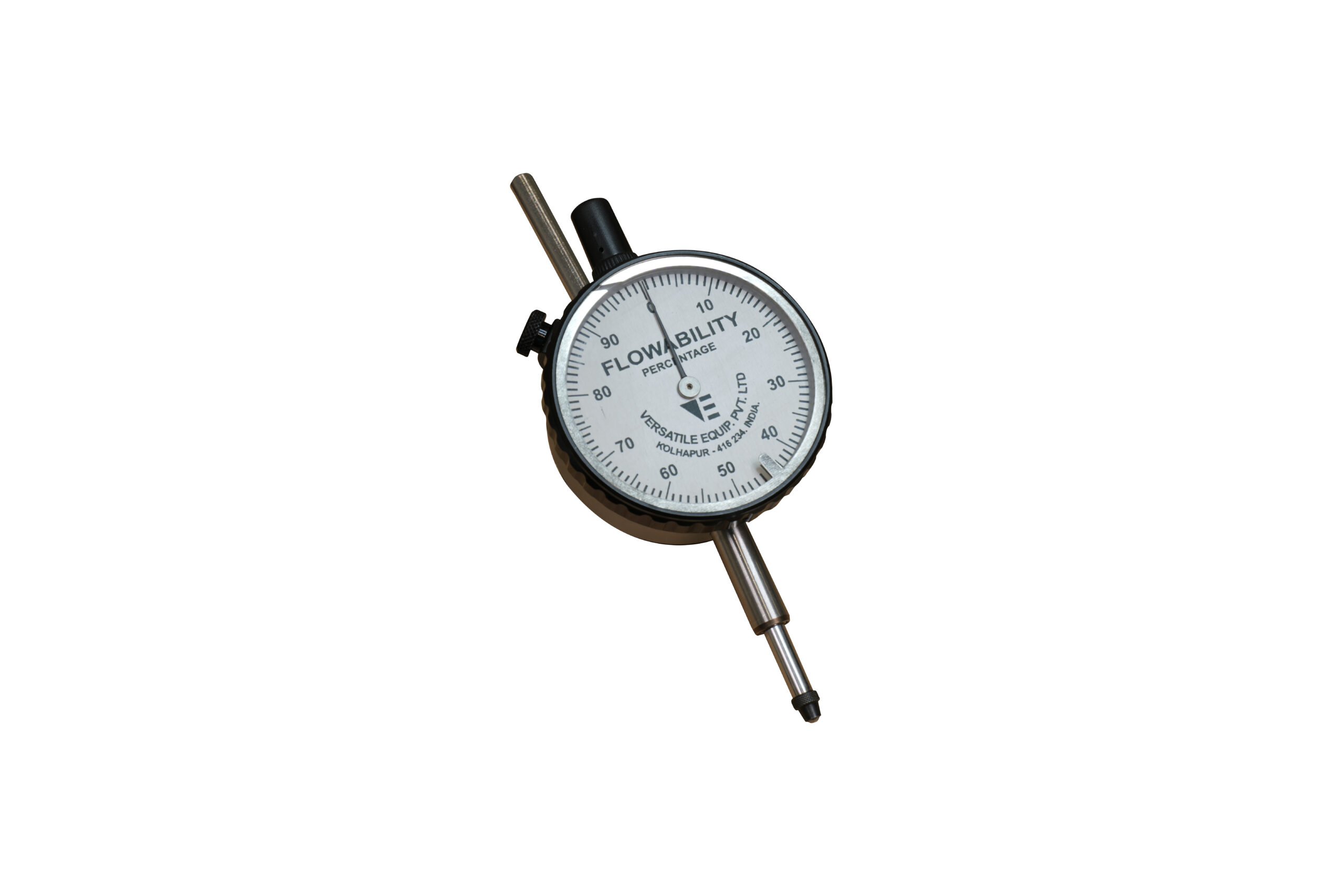

The equipment consists of a bracket, plunger & calibrated dial indicator, which can be easily shift to the backside of the rammer plunger when it is not in use.
1.2 General Usage
This instrument is used to find out flowability of sand. This is the property of sand to fill cavities in the pattern plate and to move under pressure in any direction towards the pattern surface.
1.3 Product Data
|
Product Name: |
Flowability Meter |
|
Product Code: |
VF |
|
Order Reference Code: |
V0000021 |
|
Electrical Supply Required: |
Not Required |
|
Electrical Plug: |
Not Applicable |
|
Typical Maximum Current: |
Not applicable |
|
Compressed air Supply: |
Not Required
|
|
Communication: |
Not Applicable |
|
Dimensions: |
172x185x60mm (WXBXH) |
|
Packing Dimensions: |
230x230x130mm (WXBXH) Typical |
|
Net Weight: |
Approximately 0.8 kg |
|
Gross Weight: |
Approximately 1.5 kg |
|
Colour: |
Factory Default |
|
Measuring Range: |
0-100 % |
|
Traceable to: |
Manufacturers Standards |
|
Least Count: |
1 % |
|
Specimen Requirements: |
Compression type
|
|
Operating Temperature: |
0-50 degree Celsius |
|
Testing Standards: |
BIS: Standard AFS: Optional |
|
Calibration Frequency: |
9500 nos. of Testing Cycles or Once in Year |
2.1 Scope of supply
- Flowability meter.
- Allen key.
- A wooden box to house the equipment when not in use.
- Instruction manual.
3.1 Recommended pre-requisite equipment
Sand Splitter : To get representative sample
Sand Rammer VR
Tube Filler Accessory VTF
Weighing Balance (LC 10mg)
4.1 Recommended Calibration kits
NA
4.2 Recommended attachments
- NA
4.3 Alternative equipment
- NA
5.1 Consumables
- NA
