Description
1.1 General information

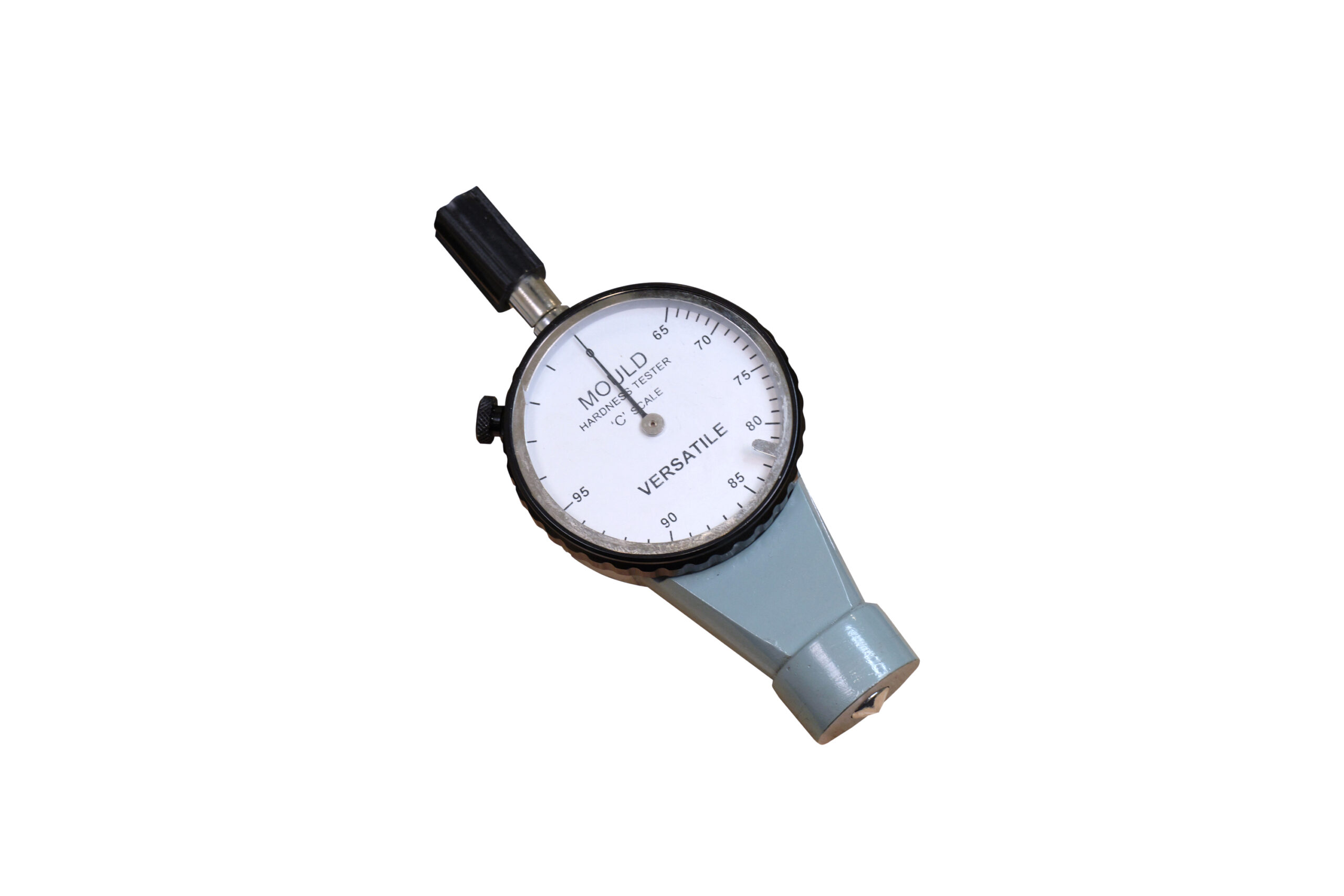

This handheld Equipment consists of a Dial indicator with Special tip designed for measurement of hardness of relatively harder sand moulds such as Green Sand moulds made with High Pressure moulding techniques.
1.2 General Usage
Tip of the Equipment is pressed against flat mould surface to observe Hardness between 65-100 typically called as Mould Hardness Number.
1.3 Product Data
|
Product Name: |
Mould Hardness Tester C Scale |
|
Product Code: |
VMHC |
|
Order Reference Code: |
V0000040 |
|
Electrical Supply Required: |
Not Required |
|
Electrical Plug: |
Not Applicable |
|
Typical Maximum Current: |
Not Applicable |
|
Compressed air Supply: |
Not Required |
|
Communication: |
Not Applicable |
|
Dimensions: |
190x125x40 mm (WXBXH) |
|
Packing Dimensions: |
230x230x130 mm (WXBXH) Typical |
|
Net Weight: |
Approximately 0.5 kg |
|
Gross Weight: |
Approximately 1.0 kg |
|
Colour: |
Factory Default |
|
Measuring Range: |
65-100 MHN (Mould Hardness Number) |
|
Traceable to: |
NABL Standards |
|
Least Count: |
1 MHN |
|
Specimen Requirements: |
Not Required |
|
Operating Temperature: |
0-50 degree Celsius |
|
Testing Standards: |
BIS: Standard AFS: Not Applicable |
|
Calibration Frequency: |
22500 nos. of Testing Cycles or Once in Year |
2.1 Scope of supply
- Hand-held equipment with tip protector.
- Head Pipe Cap.
- A box to house the equipment when not in use.
- Calibration certificate.
- Instruction manual.
3.1 Recommended pre-requisite equipment
NA
4.1 Recommended Calibration kits
VKMC: Calibration Kit for Mould & Core Hardness Tester
4.2 Recommended attachments
NA
4.3 Alternative equipment
- Digital Mould Hardness tester VHMD
- Deep Pocket Mould Hardness Tester VMHV
5.1 Consumables
NA
