Description
1.1 General information

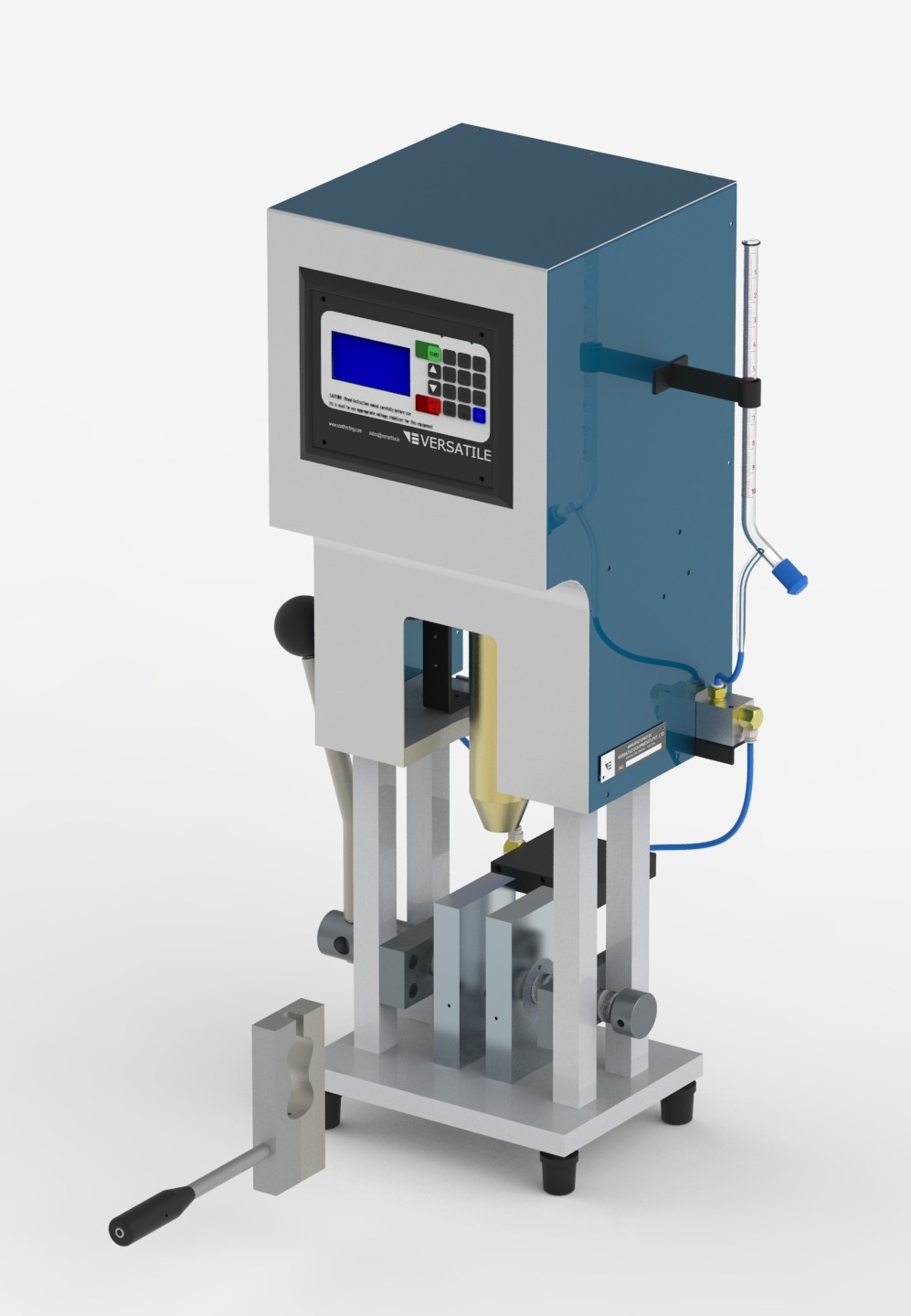

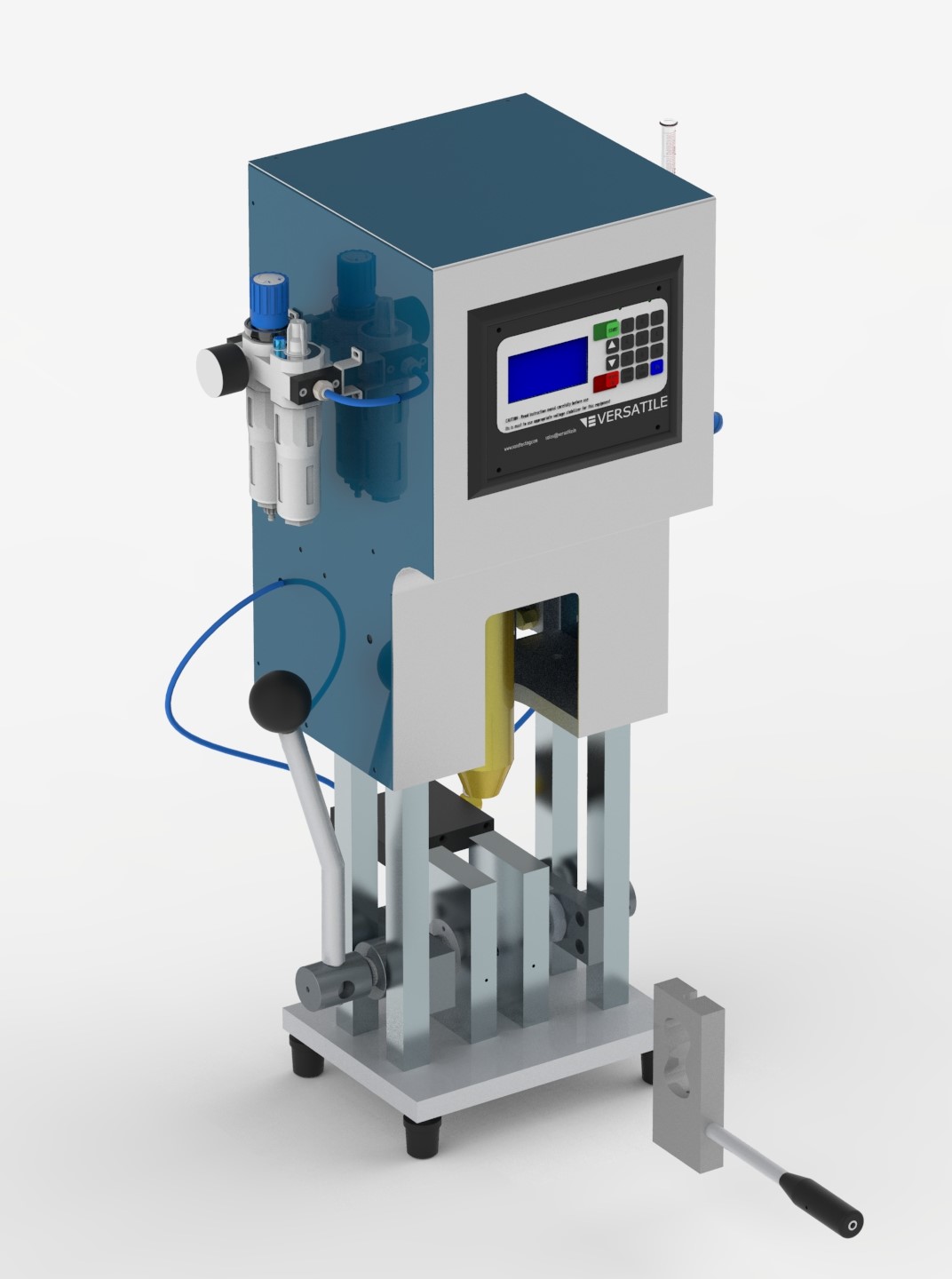

Sand shooter cold box is consists of controlled heating mechanism with temperature indicator, dumbbell shape split tensile core box with handle. Sand shooting arrangement, suitable for cold box sand. Gassing accessory with clamping mechanism.
1.2 General Usage
Sand shooter cold box has been designed as a complete unit for prepare the specimen from clod box sand. Prepared specimen use to check the tensile strength of sand.
1.3 Product Data
|
Product Name: |
Sand Shooter Cold Box |
|
Product Code: |
VSSC |
|
Order Reference Code: |
V4500721 |
|
Electrical Supply Required: |
230v 50Hz A.C. (Default) 110v 60 Hz A.C (Optional) Single Phase, Stabilized with Over/ Under Voltage cut-off. |
|
Electrical Plug: |
M type : 15 Amp Plug |
|
Typical Maximum Current: |
2.2 A at 230V |
|
Compressed air Supply: |
5 Kg/cm2 Dry Air |
|
Communication: |
Not Applicable |
|
Dimensions: |
460x380x820mm (WXBXH) |
|
Packing Dimensions: |
510x460x1000mm (WXBXH) Typical |
|
Net Weight: |
Approximately 56 kg |
|
Gross Weight: |
Approximately 66 kg |
|
Colour: |
Factory Default |
|
Measuring Range: |
One Specimen |
|
Traceable to: |
Manufacturers Standards |
|
Least Count: |
Not Applicable |
|
Specimen Requirements: |
Not Required |
|
Operating Temperature: |
0-50 degrees Celsius |
|
Testing Standards: |
BIS: Standard AFS: Optional |
|
Calibration Frequency: |
11500 nos. of Testing Cycles or Once in Year |
2.1 Scope of supply
- Sand shooter cold box.
- Tensile core box with handle.
- Gassing Accessories.
- Burette.
- Assy outer tube.
- Hand gloves set.
- Calibration certificate.
- Instruction manual.
3.1 Recommended pre-requisite equipment
Sand Splitter : To get representative sample
Sans Mixer VCS4 or
Sand Mixer VCS10
4.1 Recommended Calibration kits
VKHC: For Temperature
4.2 Recommended attachments
NA
4.3 Alternative equipment
Universal Sand Shooter Model VUS
5.1 Consumables
Amine gas liquid.
